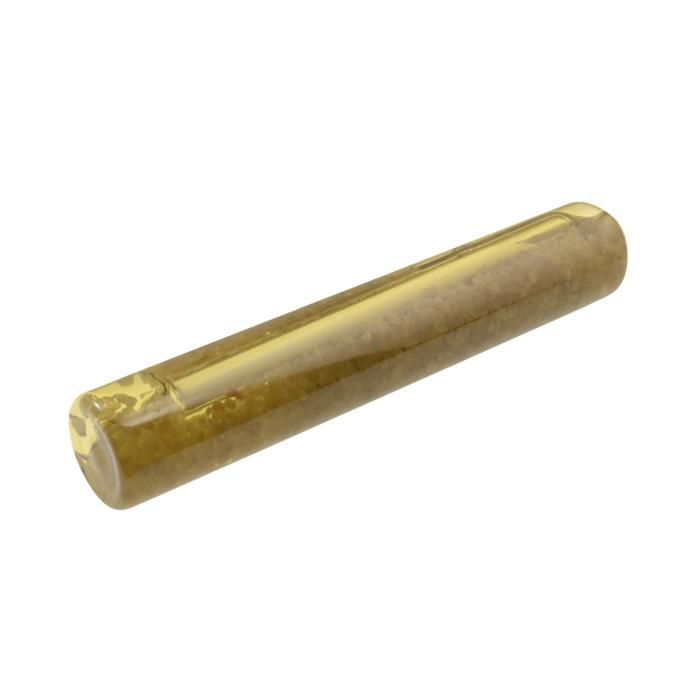

24mm Chemical Glass Capsules to suit M24 Anchor Studs

$20.00

In stock

SKU

65CC24

The “as low as price” is based on buying the largest pack qty and a cart value over $250

BUY MORE. SAVE MORE.
	Price for each item	Subtotal	% savings
Buy 1	Buy 1	$20.00 each	$20.00	-
Buy 2 +	Buy 2 - 4	$14.50 each	$29.00	27.50%
Buy 5 +	Buy 5 - 9	$8.80 each	$44.00	39.31%
Buy 10 +	Buy 10 - 19	$7.00 each	$70.00	20.45%
Buy 20 +	Buy 20 - 29	$6.65 each	$133.00	5.00%
Buy 30 +	Buy 30 - 49	$6.25 each	$187.50	6.02%
Buy 50 +	Buy 50 - 74	$6.00 each	$300.00	4.00%
Buy 75 +	Buy 75 - 99	$5.85 each	$438.75	2.50%
Buy 100 +	Buy 100 - 199	$5.75 each	$575.00	1.71%
Buy 200 +	Buy 200 +	$5.50 each	$1,100.00	4.35%
Savings % based on buy qty vs previous buy qty
Show % Savings

SKU: 65CC24

In Stock

Select Add-Ons

26mm x 250mm x 200mm SDS Plus 2 Head German Masonry Drill Bit ***Bundle Buy***

$91.00

Total amount =

Please select any of the option above and then proceed.

SKU: 65CC24

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Chemical Capsule.pdf Chemical Anchors.pdf Hobson Conxtruct Catalogue.pdf Hobson Conxtruct Product Guide.pdf Hobson Article Concrete v Anchoring.pdf

Product Chemical Capsule
Head Type No Head
Size M24 (24mm)
Internal or External External
Material Glass Capsule
Material Inner Capsule Di-benzol peroxide hardening agent
Material Outer Capsule Resin grout with quartz aggregate
Product Strength High
Product Diameter (d) 24mm
Suit Stud Diameter M24
Max Fast Thickness (g) 65mm
Drill Hole Size 26mm
Minimum Embedment Depth 210mm
Full Cure Acheived In 24 Hours
Brand Bremick Fasteners
Alternative Brands Hobson Engineering

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Chemical Glass Capsules are used in conjunction with anchor studs and are designed to be used in masonry / brickwork. They are zero wastage, fast to install, superior overhead performance and incredible cure times for almost instant loading
Features / Benefits: Volume Control: Factory pre-measured components guarantee the correct composition and volume of components. After Installation of the rod, the overflow of anchor components provides a visual confirmation of a 100% filled hole. 2. Resin Check: The transparent glass capsule allows the installer to check the quality of the resin. Usability is given when the resin runs easily inside the capsule at lukewarm temperature. 3. Auto Clean: During the installation of the anchor rod the quartz and glass components of the capsule scrape the wall of the pre-drilled hole, removing drill dust. This auto-cleaning function results in an excellent adhesion between the anchor rod and the surrounding concrete
Drying Times: Drying times vary depending on temperature, weather conditions and location, the times listed in our specification table are to be used as a guide only
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you do see a problem please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
PDF data sheet: The attached PDF data sheet has additional technical specifications and "how to" diagrams which we find to be helpful as reference material. Although provided by one of our suppliers, the brand supplied may be different. If brand is critical, please refer to the technical specification tab to see our supplier list or contact us prior to ordering. As we are always updating and adding new lines to our site the data sheet may not include every item we stock or have items that are currently not on our site. If there is something you need and you can’t find it, please contact us for price and availability
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
