M5 x 0.80p Metric Coarse Stainless A2-70 G304 Cap Torx (T25) Machine Screws ISO 14579

Select an option below to view price

In stock

SKU

21TS5_configurable

The “as low as price” is based on buying the largest pack qty and a cart value over $250

In Stock

Sold Out

Length From Under The Head

No. of Screws

- +

Total amount =

Spend discounts will apply once added to Cart

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Cap Torx Machine Screw Metric Coarse Stainless G304 ISO14579.pdf Thread Pitch Chart.pdf Imperial vs Metric Strength Chart.pdf

System of Measurement Metric
Product Machine Screw
Head Type Cap Head
Size M5 (5mm)
Size & Thread Pitch M5 x 0.80p Coarse
Thread Pitch 0.80mm
Thread Coarse
Thread Direction Right Hand
Corrosion Protection Level Excellent
Class Grade A2-70 G304
Material Stainless Steel
Length (l) Select from the dropdown
Product Diameter (d) 4.82 - 5.00mm
Head Diameter (a) 8.28 - 8.50mm
Head Height (h) 4.82 - 5.00mm
Drive Size (as) T25
Drive Type Torx
Closest size in imperial 3/16"
Standard Made To ISO14579
Brand Hobson Engineering

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

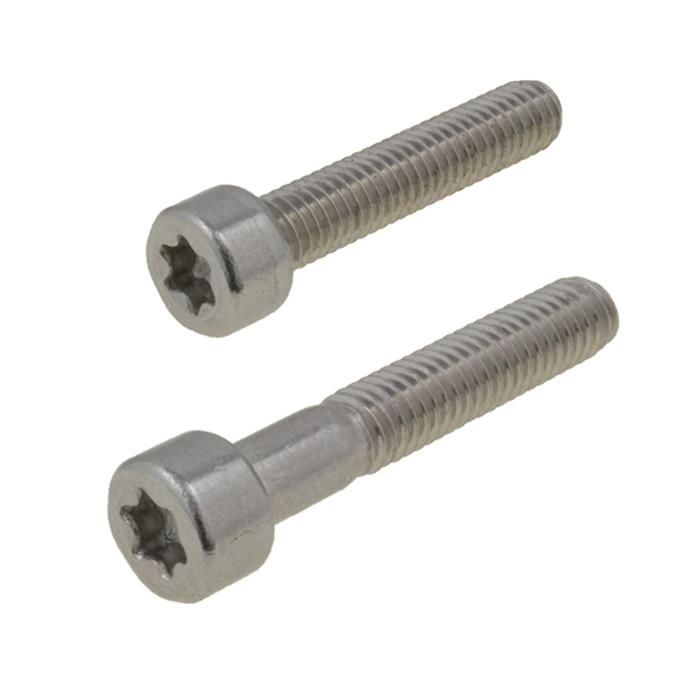

Cap Head Torx Machine Screws are also known as star drive screws, they have a six-point star recess in the head that increases torque exertion, prevets cam out and boosts fastener life. The torx drive allows for a higher torque to be exerted than a similarly sized conventional hex socket head without damaging the head and/or the tool. Torx head sizes are described using the capital letter "T" followed by a number ranging from T1 to T100. This product shares similiar specifications to the socket allen screw range
Material / Coating: Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is aesthetically pleasing to the eye and very practical because of its excellent corrosion protection in most environments. Most products can be identified by the following markings: A2, A2-70, 304 or G304. Stainless steels are largely non-magnetic but it is common for stainless steel fasteners to show a small degree of magnetism which is a result of work-hardening during the manufacturing process
Can Stainless corrode?: Stainless steel is corrosion-resistant but not corrosion-proof and corrosion can occur if the material is installed or handled incorrectly. The use of tools and drills made from conventional steel during the installation of stainless steel fasteners may also lead to problems. Even the hardest of tools can produce debris that leaves minute steel particles on the stainless steel fastener surfaces or in pre-drilled holes. It is these particles that often rust when exposed to moisture or oxygen and can result in a stained or tarnished finish to the stainless steel material
Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
Fastener length: is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
Driver Bits: A large range of suitable driver bits are in the " Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from Hobson Engineering, different batches may have variations like visible stamped markings, appearance or actual finish
Photos: Are of the product but may not be the actual diameter, head size or length you require, always refer to the size in the description and additional specifications data provided prior to ordering
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
