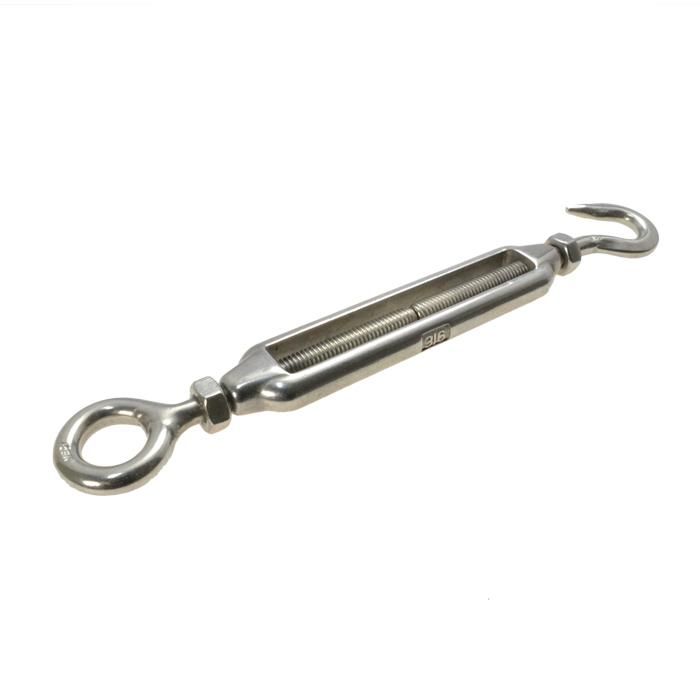

M10 x 150mm Stainless A4-70 G316 Hook & Eye Turnbuckles

$18.00

In stock

SKU

62TBSHE10150M

The “as low as price” is based on buying the largest pack qty and a cart value over $250

BUY MORE. SAVE MORE.
	Price for each item	Subtotal	% savings
Buy 1	Buy 1	$18.00 each	$18.00	-
Buy 2 +	Buy 2 - 4	$17.00 each	$34.00	5.56%
Buy 5 +	Buy 5 - 9	$15.50 each	$77.50	8.82%
Buy 10 +	Buy 10 - 19	$15.00 each	$150.00	3.23%
Buy 20 +	Buy 20 - 29	$14.50 each	$290.00	3.33%
Buy 30 +	Buy 30 - 49	$14.00 each	$420.00	3.45%
Buy 50 +	Buy 50 - 99	$13.00 each	$650.00	7.14%
Buy 100 +	Buy 100 - 199	$12.00 each	$1,200.00	7.69%
Buy 200 +	Buy 200 +	$11.00 each	$2,200.00	8.33%
Savings % based on buy qty vs previous buy qty
Show % Savings

SKU: 62TBSHE10150M

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Hook Eye Turnbuckle Stainless G316.pdf Rigging Turnbuckles.pdf

System of Measurement Metric
Product Hook Eye Turnbuckle
Head Type Hook / Eye
Size M10 (10mm)
Size & Thread Pitch M10 x 1.50p Coarse
Thread Pitch 1.50mm
Thread Coarse
Thread Direction Right | Left Hand
Corrosion Protection Level Ultimate
Class Grade A4-70 G316
Material Stainless Steel
Open Width Unwound 366mm
Length (l1) 240mm
Length (l2) 150mm
Outside Diameter of Eye (a) 33.00mm
Inside Dia. of Hook (u) 33.00mm
Inside Eye Width (w) 16.00mm
Breaking Load Kgs (Not Rated Guide only) 800
Closest size in imperial 3/8"
Brand Hobson Engineering
Alternative Brands Brighton Best | Inox World

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Hook & Eye Turnbuckles are specifically suited for adjusting the tension and length of stainless steel wire rope, balustrade systems and for other tensioning methods. Hook end fitting is used to create temporary connections because they are easy to quickly connect and disconnect. They should never be used in connections where tension could unexpectedly release
Benefits / Features: Used to adjust tension and reduce slack in a rope, cable or similar tensioning assembly. Can be used on its own or in conjunction with other turnbuckles to increase length in the assembly. ASME B30.26 - Rigging Hardware defines a turnbuckle as “an adjustable device consisting of three primary components: a body, a right-hand threaded end fitting, and a left-hand threaded end fitting.”
Breaking Load:
Maximum Tensile Force = 7.85kN or 800Kg.

The tensile strength of a material is the maximum amount of tensile stress (pull) that it can take before failure measured in Kilonewtons (kN) or kilograms-force (Kg). BL or Breaking Load is a similar measurement.

It is the Purchasers responsibility to determine whether the testing procedure and if provided, the breaking load is suitable for purpose. We are unable to supply Material Certificates for this product range.

Safe working load is recommended at approximately 20% of maximum tensile force
Material / Coating: Marine Grade Stainless Steel A4-70 G316 is the ultimate corrosion resistance fastener. Designed to be used in all conditions. It is the best material for marine, coastal, chemical and food environments. Stainless steels are largely non-magnetic but it is not uncommon for stainless steel fasteners to show a small degree of magnetism. This is partly due to the work-hardening of the product during the manufacturing process. Marine Grade Stainless Steel A4-70 G316 can be easily identified by the following markings: A4, A4-70, A4-80,316 or G316
Can Stainless corrode?: Stainless steel is corrosion-resistant but not corrosion-proof and corrosion can occur if the material is installed or handled incorrectly. The use of tools and drills made from conventional steel during the installation of stainless steel fasteners may also lead to problems. Even the hardest of tools can produce debris that leaves minute steel particles on the stainless steel fastener surfaces or in pre-drilled holes. It is these particles that often rust when exposed to moisture or oxygen and can result in a stained or tarnished finish to the stainless steel material
Seizing, Binding or Galling?: All Threads will seize under high tension. It is a well-known and accepted problem especially when using Stainless Steel or other alloys such as aluminium, etc. As pressure builds between the contacting and sliding surfaces protective oxides are broken, possibly wiped off, and interface metal high points shear or lock together. This cumulative clogging-shearing-locking action causes increasing adhesion. In the extreme, galling leads to seizing (the actual freezing together of the threads). If tightening is continued the fastener can be twisted off or its threads ripped out. The frequency of threads seizing can be reduced by using anti-seize compounds, but not eliminated. There are also other ways to minimize the occurrence of thread seizing, Keep the thread clean and away from dirt and grit, etc. Tighten the thread slowly. Work them back and forth occasionally to feel if it is tight when loosening. If the thread starts to feel like it is heating up it is because the metal threads are rubbing against each other under high tension. This can be an early sign that it may seize due to overloading. It may be that you need to go up a size to reduce the overloading. Seizing is not a product fault but is the nature of Stainless Steel material
Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
