12g (5.50mm) Stainless A2-70 G304 Countersunk Phillips (PH3) Coarse Wood Screws JIS B1112

Select an option below to view price

In stock

SKU

07CS12114_configurable

The “as low as price” is based on buying the largest pack qty and a cart value over $250

In Stock

Sold Out

Length Overall Including Head

No. of Screws

- +

Total amount =

Spend discounts will apply once added to Cart

Select Add-Ons

PH3 x 50mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$6.00

Handipak of 10 - PH3 x 50mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$20.00

Total amount =

Please select any of the option above and then proceed.

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Countersunk Phillips Wood Screw Stainless G304.pdf

System of Measurement Screw Gauge
Product Wood Screw
Head Type Countersunk Head
Size 12g (5.50mm)
Thread Pitch 11 TPI
Thread Coarse
Thread Direction Right Hand
Corrosion Protection Level Very Good
Internal or External External
Class Grade A2-70 G304
Material Stainless Steel
Product Diameter (d) 5.30 - 5.40mm
Head Diameter (a) 9.80 - 10.90mm
Screw Length (l) Overall length measurement includes head, thread and drill point
Head Height (h) 2.75 - 3.05mm
Drive Size (as) PH3
Screw Point AB Standard
Drive Type Phillips
Closest size in mm 5.50mm
Closest size in imperial 0.22"
Standard Made To JIS B1112
Brand Inox World
Alternative Brands Hobson Engineering

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

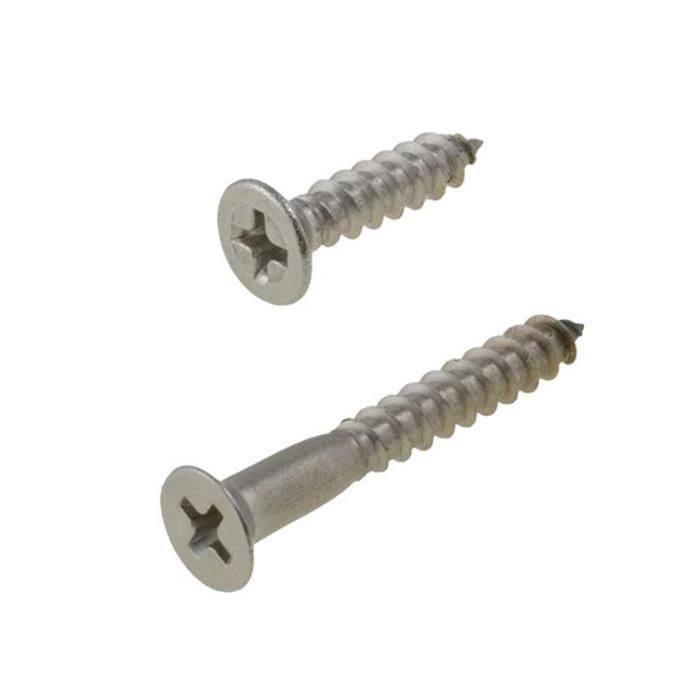

Countersunk Timber Screws are ideal for fixing door and window hinges into timber or into any other timber applications. The head is countersunk without nibs and a AB point with partial thread and tapered shank. Woodscrews are designed to slide through the top piece of wood and tightly pull all boards together
Thread Length: Thread lengths have not been included as variations exist between brands. The general rule of thumb is all stock < 25mm is fully threaded and > 25mm has a thread length that that is approx 2/3 of the overall length. eg: if a screw measures 50mm overall the thread length will be approx 50 x 0.667 (2/3") = 33.35 thread. We will always ship the same brand and thread length but subsequent orders may be another brand and the thread length may be different. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
How to measure the length of a Timber Screw: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
Material / Coating: Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is aesthetically pleasing to the eye and very practical because of its excellent corrosion protection in most environments. It is highly recommended to use Stainless Steel A4-70 G316 if the product will be used within 300 metres of the coast, in the food and chemical industry or within salt spray affected areas. Most products can be identified by the following markings: A2, A2-70, 304 or G304. Stainless steels are largely non-magnetic but it is common for stainless steel fasteners to show a small degree of magnetism which is a result of work-hardening during the manufacturing process
Can Stainless corrode?: Stainless steel is corrosion-resistant but not corrosion-proof and corrosion can occur if the material is installed or handled incorrectly. The use of tools and drills made from conventional steel during the installation of stainless steel fasteners may also lead to problems. Even the hardest of tools can produce debris that leaves minute steel particles on the stainless steel fastener surfaces or in pre-drilled holes. It is these particles that often rust when exposed to moisture or oxygen and can result in a stained or tarnished finish to the stainless steel material
What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch count ½” of an inch and multiply by 2
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
