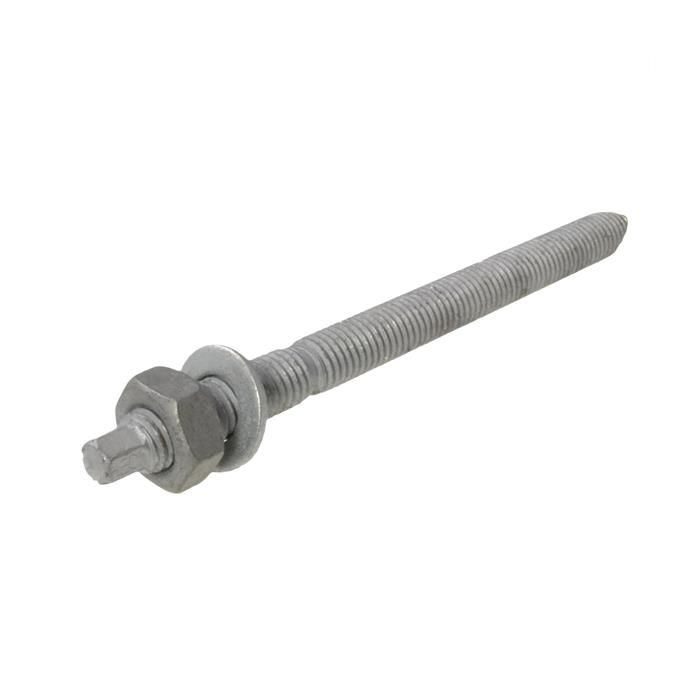

M24 x 300mm Galvanised Chisel Point Chemical Anchor Stud Bolt

$5.865
In stock
SKU
65CA24300CPG
The “as low as price” is based on buying the largest pack qty and a cart value over $250
BUY MORE. SAVE MORE.
Price for each item Subtotal % savings
Buy 1 Buy 1 $18.00 each $18.00 -
Buy 2 + Buy 2 - 4 $16.00 each $32.00 11.11%
Buy 5 + Buy 5 - 9 $14.00 each $70.00 12.50%
Buy 10 + Buy 10 - 19 $13.00 each $130.00 7.14%
Buy 20 + Buy 20 - 29 $12.00 each $240.00 7.69%
Buy 30 + Buy 30 - 49 $10.00 each $300.00 16.67%
Buy 50 + Buy 50 - 74 $9.10 each $455.00 9.00%
Buy 75 + Buy 75 - 99 $8.20 each $615.00 9.89%
Buy 100 + Buy 100 - 199 $7.26 each $726.00 11.46%
Buy 200 + Buy 200 + $6.90 each $1,380.00 4.96%

Savings % based on buy qty vs previous buy qty

Show % Savings

Buy 5 for Suppliers Pack Size

This is the pack size qty from our preferred supplier. You do not have to buy this qty but rounding your ordering qty up to the pack size can be better value and speed up dispatch and delivery times. The stock may also be sent in the suppliers original packaging which can have additional information like batch numbers and / or expiry dates for traceability. If we ship your order directly from our supplier the pack size may vary. Orders under $40 or weigh less than 500grams may be repacked for postage. Pack sizes vary by supplier and subject to change

SKU: 65CA24300CPG

In Stock

- +

$17.10 ($17.10/each)

Your Spend Discount of 5% has been applied
Spend a further $82.00 to get 10% off your Total Order

Select Add-Ons

Loader
tier Total amount = $17.10

Your Spend Discount of 5% has been applied
Spend a further $82.00 to get 10% off your Total Order

SKU: 65CA24300CPG

In Stock

Matching Parts
  • Product Chemical Anchor Stud
  • Head Type Hex Head
  • Size M24 (24mm)
  • Size & Thread Pitch M24 x 3.00p Coarse
  • Anchor Length (l) 300mm
  • Corrosion Protection Level Excellent
  • Internal or External External
  • Class Grade Low Tensile Class 5.8
  • Material Carbon Steel
  • Finish Galvanised
  • Nut & Washer Included 1x Nut & 1x Washer
  • Max Fast Thickness (g) 49mm
  • Drive Size (as) 36mm
  • Drive Type Hex
  • Drill Hole Size 26mm
  • Minimum Spacing 105mm
  • Min Base Material Thick 280mm
  • Minimum Edge Distance 105mm
  • Minimum Embedment Depth 210mm
  • Standard Made To AS1789
  • Brand Bremick Fasteners
  • Alternative Brands Hobson Engineering

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

  • Chisel Point Chemical Anchor studs are a heavy duty threaded stud used in combination with chemical glass capsules or chemical anchor adhesive injection systems for fastening into concrete and masonry.
  • Features / Benefits: Precut to industry standard chemical anchoring lengths and supplied with nuts and washers the anchor has a hex external for easier installation which does not collect water. The depth indicator on the stud assists for accurate embedment during installation. Bevelled tip releases trapped air and prevents unthreading
  • Material / Coating: Galvanised is a dull greyish colour and can be a little rough in appearance and is mainly used outdoors because of its superior corrosion resistance and proven longevity. Also known as HDG, it is one of the best coatings for protection against rust. Galvanised fasteners have been used across many industries in Australia for over 150 years in construction, roofing, steel buildings, trailers, bridges, fencing, power poles, marina’s, are just a few examples. Recently we have seen a lot of new coatings developed, terms like class 3, class 4, B8, climseal, mechanical galvanised and ruspert which are all variations of the original galvanising
  • Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
  • Fastener length: is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
  • Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you do see a problem please contact us
  • Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
  • Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
  • PDF data sheet: The attached PDF data sheet has additional technical specifications and "how to" diagrams which we find to be helpful as reference material. Although provided by one of our suppliers, the brand supplied may be different. If brand is critical, please refer to the technical specification tab to see our supplier list or contact us prior to ordering. As we are always updating and adding new lines to our site the data sheet may not include every item we stock or have items that are currently not on our site. If there is something you need and you can’t find it, please contact us for price and availability
  • Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
  • Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
  • Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
  • Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
