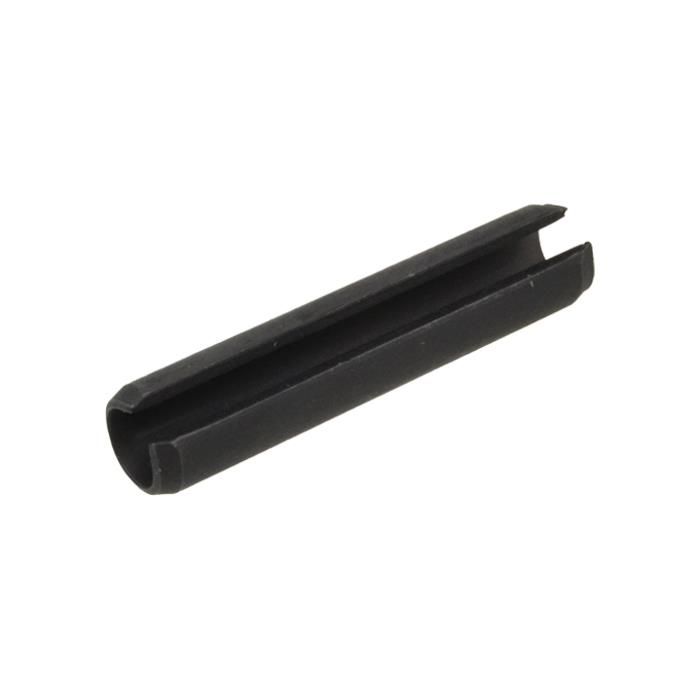

6mm (M6) Metric Black Oxide Slotted Spring Roll Pins ISO 8752

Select an option below to view price

In stock

SKU

37SP6P_configurable

The “as low as price” is based on buying the largest pack qty and a cart value over $250

In Stock

Sold Out

Length Overall

No. of Spring Pins

- +

Total amount =

Spend discounts will apply once added to Cart

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Spring Pins ISO 8752.pdf Spring Pins.pdf Imperial vs Metric Strength Chart.pdf

System of Measurement Metric
Product Spring Pin
Size M6 (6mm)
Corrosion Protection Level Limited
Class Grade High Tensile
Material Hardened Carbon Steel
Finish Black Oxide | Zinc Plated
Length (l) Select from the dropdown
Pin Diameter (d1) 6.40 - 6.70mm
Hole Size to Suit 6.00 - 6.12mm
Wall Thickness (w) 1.20mm
Inside Dimension (id) 4.20mm
Double Shear Load (kN) 26.04
Closest size in imperial 15/64"
Standard Made To ISO 8752
Brand Hobson Engineering
Alternative Brands Brighton Best

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Spring Roll Pins are un-headed fasteners used to secure 2 or more parts. The parts can be fixed or swivel on the pin once installed. The body diameter of the pin is larger than the hole they are designed to go into. This creates a spring effect as the pin is compressed slightly to fit into designed hole and expands against the wall of the hole. The spring effect ensures that the pin stays in place and acts as a fastener. Also known as: Tension Pins, Roll Pins, Slot Pins, Sel-Loc Pins, S-Lok Pins
Features: > Resuable: Simple to disassemble with a pin punch or drift pin, will then return to original diameter for re-use > Light weight: 30 to 40% lighter than equivalent solid pins > Fits standard size holes: Eliminates second operation such as reaming, milling, chamfering and tapping > Strong: Spring pins can suitably replace cold-rolled or taper pins of equal diameter > Self-locking: Built-in locking mechanism with spring action
Also known as: Tension Pins, Roll Pins, Slot Pins, Sel-Loc Pins, S-Lok Pins
Material / Coating: ****IMPORTANT**** Due to availability some sizes are only available as Zinc Plated. When selecting the length you will see the finish of the product supplied
Standard: There are 2 standards of roll pins ASME B18.8.4M and ISO 8752, we carry ISO 8752, the heavier standard with the larger pin diameter
Chamfer Length: Pins supplied with diameter = or > 10mm may be supplied with a single chamfer configuration
Material / Coating: Black Oxide has a grey / blackish appearance that adds a mild layer of corrosion and abrasion resistance to the fastener. An appealing look when a bright shine is not desired. Due to the process, we do see some instances of inconsistency of the final appearance. Like any material, black oxide treated fasteners can rust in the right environments. It will depend on if the fastener is damaged or marred, the type of metal with the black oxide treatment and environmental conditions. Another benefit is it does not significantly change the dimensions of the fastener like other plating’s
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
