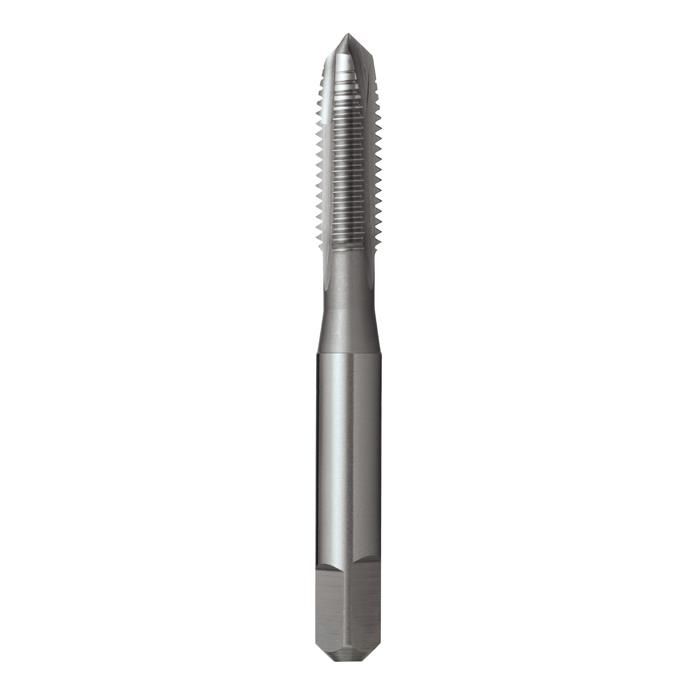

M3 x 0.50p Metric Coarse HSSE Intermediate Spiral Point Gun Tap Sutton Tools ISO 529 T3930300

$35.00

In stock

SKU

14G3SPS

The “as low as price” is based on buying the largest pack qty and a cart value over $250

BUY MORE. SAVE MORE.
	Price for each item	Subtotal	% savings
Buy 1	Buy 1	$35.00 each	$35.00	-
Buy 2 +	Buy 2 - 4	$33.00 each	$66.00	5.71%
Buy 5 +	Buy 5 +	$31.00 each	$155.00	6.06%
Savings % based on buy qty vs previous buy qty
Show % Savings

SKU: 14G3SPS

In Stock

Select Add-Ons

2.5mm x 57mm Alpha HSS Jobber Drill Bit ***Bundle Buy***

$1.80

Total amount =

Please select any of the option above and then proceed.

SKU: 14G3SPS

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Matching Parts

Technical Specifications

Specs - Gun Tap HSSE V3 Metric Coarse Sutton Tools.pdf Sutton Gun Taps T393.pdf Tapping and Drill Chart.pdf Taps & Dies.pdf

System of Measurement Metric
Product Gun Tap
Product Types Gun Tap
Size M3 (3mm)
Size & Thread Pitch M3 x 0.50p Coarse
Thread Pitch 0.50mm
Thread Direction Right Hand
Material HSSE V3
Coating Bright
Length (l) 48mm
Length (l1) 11mm
Chamfer Intermediate
Suitable For Suitable for materials up to 1000N/mm
Tapping Drill Size 2.50mm
Drive Square (ds) 2.50mm
Closest size in imperial 1/8" | #5
Working Thickness Depths up to approx 3 x dia
Standard Made To ISO529
Packaging Supplied in a Plastic Pack
Country of Origin Australia
Brand Sutton Tools

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Gun Taps work well in many types of materials due to the shearing action of the spiral grind, they "shoot" chips forward they are very effective at clearing chips ahead of the cutting edge of the tap and pushing them out the other end of the hole
Features / Benefits: Gun taps are very effective for deep hole tapping. The hole being tapped should be a thru hole, or have plenty of clearance to allow for chip collection. Spiral point taps are also very popular because of their versatility. They work well in many types of materials due to the shearing action of the spiral grind
Also known as: Spiral flute taps

Cutting Fluid: Recommend the use of a cutting fluid or compound to aid in the efficiency and to prolong its working life. We recommend Alpha CDT cutting fluid (Code ATL005)

Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm

Specifications: Every effort has been made to ensure all specifications on our site are accurate and to the relevant standard, they should only be used as a guide. If you see any problems or wish to query something, please contact us

Additional Information: Click on the datasheet tab for additional information

Photos: All photos are for illustration purpose only. Actual product may vary due to product enhancement

Updating our site: If you see any problems with any of our specifications or you require additional information please contact us

Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
